LiDAR Sensors Explained: Types, Specs, and How to Choose
A LiDAR sensor measures distance by timing how long a pulse of laser light takes to bounce off a target and return — the same time-of-flight principle survey aircraft use to map entire coastlines, packed into a module small enough to sit on a robot or a drone. Some modules report a single distance reading; others spin a laser through 360° to draw a 2D floor plan; a few build a full 3D point cloud. This guide walks through how each type works, which specifications actually matter when comparing datasheets, and which sensor fits a given project, from a single-point Arduino module to a scanning unit built for SLAM.
How a LiDAR sensor measures distance
LiDAR stands for Light Detection and Ranging: a remote-sensing method that fires pulses of laser light at a target and analyzes the light that comes back to determine range, as NOAA's overview of the technology explains. In a sensor built for robotics or hobby use, that basic idea shows up as one of two measurement techniques.
Time-of-flight (ToF) sensors emit a pulse and measure the elapsed time before it returns; because light travels at a fixed, known speed, that time converts directly into distance. This is the approach behind single-point ranging modules and the newer "DTOF" (direct time-of-flight) scanning units — Slamtec's RPLIDAR C1, for example, combines DTOF ranging with 360° rotation to cover a 12-meter radius at up to 5,000 samples per second, with a blind range of just 0.05 m.
Triangulation sensors instead fire a laser at an angle and use a small image sensor to see where the reflection lands; the known distance between emitter and detector, plus the angle of the returning spot, yields the range through simple geometry. This older but still common approach powers a lot of low-cost rotating LiDAR — Slamtec's original RPLIDAR A1 uses laser triangulation and a rotating core to sample its surroundings more than 8,000 times per second, at a configurable 2–10 Hz scan rate.
Both techniques scale up the same way: repeat the measurement thousands of times per second while sweeping the beam — mechanically, with a rotating motor, or electronically, with no moving parts at all — and the individual distance readings become a point cloud, a set of coordinates that traces the shape of whatever the sensor is pointed at.
The main types of LiDAR sensors
"LiDAR sensor" covers a wide range of hardware, from a coin-sized distance module to a roof-mounted automotive unit. For a maker or a robotics builder, the category matters more than the brand: it determines what data comes out — one number, a flat 2D scan, or a full 3D cloud — and how it integrates.
Single-point (1D) LiDAR sensors
The simplest category reports one distance reading, straight ahead, many times per second — no rotation, no scanning. Benewake's TF-Luna is a representative example: a time-of-flight module measuring roughly 35 × 21.25 × 13.5 mm that reports distance over a 0.2–8 m range at up to 250 Hz, communicating over UART, I²C, or a simple digital I/O pin, and drawing 0.35 W or less. These single-point sensors are the cheapest way to add distance sensing to an Arduino project, a drone's altitude hold, or a simple obstacle-avoidance bumper — anywhere a design needs to know "how far is the thing directly ahead," not a map of the whole room.
Disclosure: this article contains affiliate links. If you buy through them we may earn a small commission at no extra cost to you.
- Document: https://en(DOT)benewake(DOT)com/DataDownload/index.aspx?pid=20&lcid=21
- Communication level: LVTTL(3.3V), Communication interface: UART/IIC (the default is UART, you can send comment to set it to IIC ), Default baud rate: 115200
- Low-cost ranging LiDAR module with highly stable, accurate, sensitive range detection. Operating range: 0.2-8m
- Application: Traffic Monitoring, Obstacle detection, Level measurement, Smart device, Security and obstacle avoidance, Drone altitude holding and terrain following
- What you will get: 1 piece TF-Luna LiDAR Module and 3 pieces 1.25mm 6P Cable
The same measurement principle scales up for outdoor and longer-range work. Benewake's TFmini-S and TFmini Plus extend coverage to 0.1–12 m with an IP65 rating for dust and water resistance, and the TF02-Pro reaches a 0.1–40 m range in the same waterproof housing — the kind of spec sheet that fits a UAV altimeter or an outdoor security sensor rather than a benchtop project.
- Long-Range Detection: Measures distances from 0.05m to 40m (90% reflectivity) and up to 13.5m (10% reflectivity), even under 100Klux ambient light.
- High Accuracy: ±5cm (0.05–5m), ±1% (5–40m), with a resolution of 1cm and repeatability of <2cm.
- Ultra-Fast Response: Frame rate up to 1000Hz for real-time monitoring.
- Robust Design: IP65 protection, operating temperature -20°C to 60°C, and durable PC/ABS enclosure.
- Multi-Interface Support: I/O ,UART (default 115200 baud) and I²C (400kbps) protocols for flexible integration.
2D LiDAR sensors
Spin a single-point measurement through 360° and the result is a 2D LiDAR: a flat, horizontal slice of the environment built from thousands of distance readings per rotation. This is the standard input for SLAM (simultaneous localization and mapping) on indoor robots, because a rotating scan draws a floor plan the robot can use to navigate and avoid obstacles. Slamtec's RPLIDAR line spans both measurement techniques described above: the RPLIDAR A1 is a triangulation-based unit built around a rotating core, while the newer RPLIDAR C1 moves to DTOF ranging for better performance at range and on low-reflectivity surfaces. Slamtec's own product FAQ states that RPLIDAR units are designed to support roughly five years of continuous 24/7 operation. Vacuum robots, delivery robots, and most hobby SLAM builds run on this class of sensor.
- Range Radius: 12 meters; Power Supply: 5V; The size of scews fit into the mounting holes on the bottom of Lidar will be M2.5.
- 360 Degree Omnidirectional Laser Range Scanning Configurable Scan Rate from 2-10Hz; Plug and Play
- 8000 Times Sample Rate, the Highest in the Current Economical LIDAR industry
- OPTMAG Original Design, prolong the life-span, Ideal for Robot Navigation and Localization
- Contact us by email Monica#smartfire.cn(#------>@).

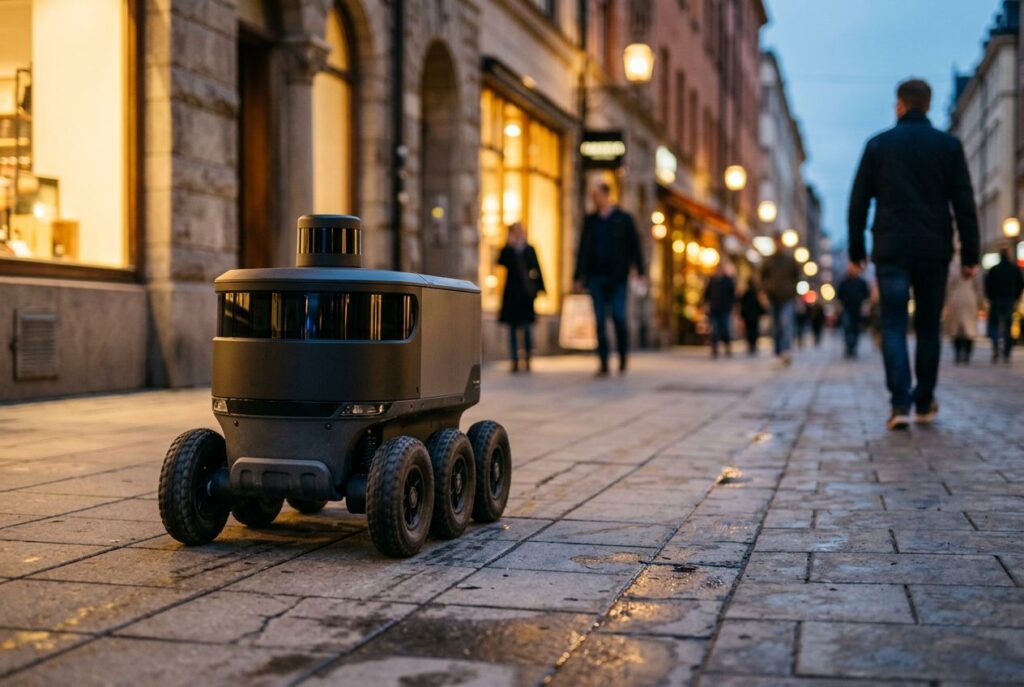

3D LiDAR sensors
Add a second scanning axis — multiple laser channels stacked vertically, or a mirror that sweeps up and down as well as around — and a LiDAR sensor builds a full 3D point cloud instead of a flat slice. This is the category used in autonomous vehicles, aerial survey and mapping, and outdoor mobile robots that need height information, not just a flat map at sensor level. It is also the most complex and power-hungry tier, and outside drone-mounted mapping payloads it rarely shows up in hobby projects. Where a 3D LiDAR sensor is being weighed against radar specifically — for an ADAS or autonomous-driving use case — our LiDAR vs radar comparison covers that trade-off in depth.
Solid-state and MEMS LiDAR
Every sensor described above, aside from flash designs, relies on some form of moving part — a full spinning core in classic 2D/3D units, or a smaller beam-steering mechanism. Solid-state LiDAR replaces the rotating motor with either a MEMS micro-mirror (a tiny mirror steered electronically instead of by a full rotating assembly) or an optical phased array combined with flash illumination, which lights up the whole scene at once and reads the return with a sensor array rather than a scanning beam. The appeal is mechanical: no motor or slip ring to wear out, a smaller footprint, and a sensor that can sit flush against a chassis instead of on top of it. Slamtec's own OPTMAG design, used across the RPLIDAR line, is a hybrid step in that direction — it replaces the wear-prone slip ring found in older rotating LiDAR with a contactless power and data link, addressing the same mechanical-wear problem that pushes the industry toward fully solid-state designs.
The specs that actually matter
Datasheets differ in units and terminology, but a handful of fields decide whether a given LiDAR sensor fits a project:
| Spec | What it tells you | Example |
|---|---|---|
| Range | Minimum and maximum distance the sensor can reliably report. A short-range module is fine indoors; an outdoor drone or vehicle needs more headroom. | TF-Luna: 0.2–8 m. TF02-Pro: 0.1–40 m. |
| Frame / sample rate | How many distance readings per second the sensor outputs. A higher rate gives a faster-moving robot more current data. | TF-Luna: 1–250 Hz. RPLIDAR A1: 8,000+ samples/sec while rotating at 2–10 Hz. |
| Ranging principle | Triangulation sensors tend to be simpler and excel at short range with fine precision; DTOF sensors trade a little near-range precision for longer range and better performance on low-reflectivity surfaces. | RPLIDAR A1 (triangulation) vs. RPLIDAR C1 (DTOF). |
| Interface | How the sensor talks to a microcontroller or computer. UART and I²C are standard for hobby single-point sensors; scanning 2D/3D units typically add USB. | TF-Luna: UART, I²C, or digital I/O. |
| Blind range | The minimum distance the sensor cannot measure reliably — matters for close-quarters obstacle avoidance. | RPLIDAR C1's blind range is 0.05 m. |
| Environmental rating | An IP65 rating means dust- and water-jet resistance, relevant outdoors or on a drone; indoor single-point sensors often skip a formal rating. | TFmini-S and TF02-Pro are IP65-rated; the base TF-Luna is not. |
Listed prices shift constantly and vary by retailer, so this guide won't quote figures — check current listings for that. What's stable is which factors push a given LiDAR sensor toward the expensive end of its category:
- Range and precision together. A sensor that is both long-range and precise costs more to engineer than one that's only good at one of the two; single-point sensors optimized for a short indoor range sit at the affordable end, while longer-range outdoor units cost more for the added optics and processing.
- Ranging principle. DTOF designs generally need more sophisticated optics and processing than triangulation designs, which is part of why a newer DTOF scanning unit and an older triangulation unit can sit at different price points even though the two integrate the same way.
- Moving parts. A rotating mechanical scanner needs a motor and bearings — and, in older designs, a slip ring for power and data — all of which add cost and wear compared with a fixed single-point sensor or a solid-state design with no moving parts.
- Environmental rating and durability. A housing engineered to survive dust, rain, and vibration on a drone or outdoor robot costs more to build than an indoor-only module.
In practice, the cheapest way into LiDAR is a single-point sensor for an Arduino or Raspberry Pi project, and cost climbs from there as range, scanning, and environmental durability get added.
Choosing the right LiDAR sensor for your project
Match the sensor category to what the project actually needs to know, not to the most impressive-sounding spec sheet:
- Obstacle detection, altitude hold, or simple presence sensing: a single-point sensor is enough — the design needs one number, repeated fast, not a map.
- Indoor mobile robot, vacuum robot, or SLAM project: a 2D scanning LiDAR. Pairing it with an IMU lets the robot estimate its own motion between scans, which is standard practice in mobile robotics.
- Outdoor robot, drone, or vehicle that needs height information as well as a flat map: a 3D LiDAR sensor, usually paired with radar and cameras rather than used alone — see LiDAR vs radar for when each one wins.
- Compact build with tight power or space budgets: solid-state or MEMS LiDAR, at the cost of fewer off-the-shelf hobbyist options than classic rotating units.
Whichever category fits, the raw distance reading or point cloud is only the input. Turning it into a reliable navigation or perception system means combining it with other sensors and filtering the result — the discipline covered in our guide to sensor fusion algorithms, and in the broader complete guide to sensor fusion. If the LiDAR sensor is one part of a larger edge-AI build — for example feeding distance data to a Raspberry Pi running an object-detection model — our Raspberry Pi AI kit buyer's guide covers the compute side of that pairing.
For a broader shortlist across sensor types and price points, here are current listings worth comparing:
- [High-precision Fused 2D LiDAR] RPLIDAR C1 2D lidar sensor support ranging radius up to 12m, Ranging blind spot as low as 0.05m, Scanning frequency 8~12Hz, Typical: 10Hz (600rpm), 5K sampling frequency, 0.72° angular resolution, IP54 Proof Level, Light intensity resistance: 40,000lux, Ranging Resolution: ±30mm, Pitch Angle: 0°-1.5°, Range Accuracy: 15mm.
- [HD High Definition and Cost-Effective] RPLIDAR C1 lidar scanner integrates the technical advantages accumulated in triangulation and TOF ranging for many years, enabling C1 rangefinder to meet the requirements of robot positioning, mapping, and navigation in terms of ranging accuracy, distance measurement, anti-interference, and anti-adhesion performance.
- [Compact in Size and Easy to Integrate] RPLIDAR C1 lidar sensor not only delivers powerful performance but also features a compact and agile design. It is small and has low levels of noise and vibration, making it easy to integrate into various applications. Its compact size and versatility open up a wide range of possibilities and uses.
- [Comprehensive SDK tutorial and Support ROS] WayPonDEV can provides SDK development packages that can run on different platforms such as x86 Windows, x86 Linux, and arm Linux. RPLIDAR C1 2D LiDAR supports ROS and ROS2 operating systems, assisting customers in development and integration across various operating systems and architectures.
- [Widely Application Scenarios] RPLIDAR C1 Lidar Sensor rangefinder can be applied to Home Robots, Environmental scanning and 3D reconstruction, Commercial Robot, Obstacle detection and avoidance, Autonomous Vehicles in Low-Speed Parks, Parking Lot Space Monitoring and so on.
- [Wiki] SDK Document: "www dot slamtec dot com/en/Support#rplidar-c1". Please click "WayPonDEV" store and ask the question. All technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)" .
- [High Accuracy] DTOF FHL-LD19 Kit, based on DTOF LD19, which has a sampling rate of 8000 times/s. In addition, The lidar ranging distance can reach up to 12 meters Based on white objects with 70% reflectivity,so it can collect environmental information at a rather high speed and accuracy, ensure a real-time performance.
- [360 Degree 2D Scanning] The ranging core of DTOF FHL-LD19 rotates clockwise, performs 360 degree 2D omnidirectional lidar range scan on the surrounding environment, and generates an outline map. configurable scan rate from 5~13Hz, Typical 10Hz.
- [Plug and Play] With the 3 feature: Build-in Serial Port and USB Interface, Open Source SDK and Tools and Integration with ROS, Just connecting the DTOF FHL-LD19 and a computer via a micro USB cable, users can use the DTOF FHL-LD19 without any coding job. DTOF technology, which repairs electrical connection errors due to physical wear and prolong the life-span.
- [Widely Application] It can be used for home service/cleaning robot navigation and localization, general robot navigation and localization, smart toy’s localization and obstacle avoidance, environment scanning and 3D re-modeling, General simultaneous localization and mapping (SLAM), etc.
- [Wiki] You can find more docs by wiki.youyeetoo.com/en/Lidar/LD19.Any technical issues after purchase please contact with our forum by forum.youyeetoo.com/ or click "WayPonDEV" Store and ask a question. Or send message to monica @ youyeetoo.com
- [Triangulation Technology] LD14P is based on traditional triangulation radar technology to achieve 360-degree environment detection,paired with LDROBOT first-class algorithm logic to achieve high-precision map construction and obstacle detection forthe robot.
- [Ultra Long Range] After algorithm optimization, the distance measurement can reach 8M, and the longer distance measurement range can sense the environmental information in a farther range, and can obtain more environmental contour information.
- [Easy to integrate] LD14P rangefinder ladar lightweight and compact, the design of the integrated dust cover, the improved design in terms of dust prevention and anti-winding, can completely solve the problem of debris winding.
- [Strong adaptability] LD14P sensor scanner can be perfectly adapted and compatible with the triangular laser radar LD14P, which makes the installation more convenient, adapts to more types of robots, and quickly realizes large-scale mass production.
- [Anti-glare] Effectively resist ambient light interference, first-class filter processing technology, meet the use in 80000Lux strong light environment, and can be used in various indoor and outdoor environments.
Frequently asked questions about LiDAR sensors
What does a LiDAR sensor do?
It measures distance by timing a pulse of laser light — or, in triangulation designs, by measuring the angle of the reflected beam — as it bounces off a target and returns. Repeated many times per second and swept across an area, those individual distance readings build a 2D scan or a 3D point cloud of the surroundings.
Is LiDAR a laser or radar?
LiDAR uses laser light, not radio waves. Both measure distance using time of flight, but LiDAR's light-based approach gives much finer spatial resolution than radar, at the cost of being more affected by rain, fog, and dust. Our LiDAR vs radar guide compares the two directly.
What LiDAR sensor is in the iPhone?
Apple's LiDAR Scanner, introduced on the iPhone 12 Pro, is a time-of-flight sensor with an effective range reported at around 5 meters (16 feet). It's used mainly to speed up camera autofocus and to power AR and room-scanning apps such as Measure and RoomPlan, rather than for long-range navigation.
What's the difference between 2D and 3D LiDAR sensors?
A 2D LiDAR rotates a single laser measurement through 360° to produce a flat, horizontal scan — enough for indoor SLAM and floor-plan mapping. A 3D LiDAR adds a second scanning axis (multiple stacked channels, or a mirror that also sweeps vertically) to build a full three-dimensional point cloud, at higher cost and power draw.
Can I use a LiDAR sensor with Arduino?
Yes — single-point modules like the TF-Luna and TFmini family are built for exactly this: they communicate over UART or I²C, run on 5 V, and are small and light enough to mount on a hobby robot or drone controlled by an Arduino, Raspberry Pi, or a flight controller such as Pixhawk.
How much does a LiDAR sensor cost?
It depends heavily on category: single-point sensors for Arduino-class projects are the most affordable entry point, 2D scanning units cost more for the added motor and optics, and 3D or automotive-grade LiDAR sits well above both. Because listed prices shift constantly, check current retailer listings rather than relying on a fixed figure.
